A System for Imitation Learning of Contact-Rich Bimanual Manipulation Policies

Simon Stepputtis1, Maryam Bandari2, Stefan Schaal2, Heni Ben Amor3
1Carnegie Melon University, 2Intrinsic, An Alphabet Company, 3Arizona State University

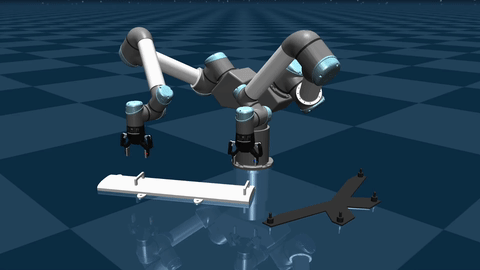

Simulation task
Simulation close-up insertion


In this paper, we discuss a framework for teaching bimanual manipulation tasks by imitation.

To this end, we present a system and algorithms for learning compliant and contact-rich robot behavior from human demonstrations. The presented system combines insights from admittance control and machine learning to extract control policies that can (a) recover from and adapt to a variety of disturbances in time and space while also (b) effectively leveraging physical contact with the environment.

We demonstrate the effectiveness of our approach using a real-world insertion task involving multiple simultaneous contacts between a manipulated object and insertion pegs. We also investigate efficient means of collecting training data for such bimanual settings. To this end, we conduct a human-subject study and analyze the effort and mental demand as reported by the users. Our experiments show that, while harder to provide, the additional force/torque information available in teleoperated demonstrations is crucial for phase estimation and task success. Ultimately, force/torque data substantially improves manipulation robustness, resulting in a 90\% success rate in a multipoint insertion task.

Introduction Video (3 Minutes)

Bimanual Manipulation

Full IROS 2022 Presentation (7 Minutes)


In our approach, we combine multimodal sensor data acquired from force/torque sensors attached to each robot's wrist, visual object tracking, and robot joint states to learn a Bayesian Interaction Primitive. The learned model then infers the temporal and spatial progress of the insertion task in terms of a phase value \(\phi\). This phase \(0 \leq \phi \leq 1\) describes the progress of the task, allowing us to represent varying trajectory lengths in the real world on a unified scale. The phase estimation is key to enabling temporal inference over the task progress to appropriately react to perturbations.

Phase Estimation During Perturbation

Phase Estimation

When exposed to external perturbations or facing difficulties during the insertion, the phase estimate \(\phi\) is continuously adjusted.

Motion Consistency

Motion Consistency

When the phase \(\phi\) is adjusted by the algorithm, predicted motions remain in a similar motion domain, even when pused outside of demonstrated behavior.

When misalignments or other external perturbations are detected, the phase estimation, together with the underlying admittance controller, are used to overcome obstructions. This allows the system to correct and even reverse the estimated task progress, resulting in multiple insertion attempts. At its core, the combination of phase estimation and adaptive admittance control enables smooth insertions, as shown in the videos above.

To train the bayesian interaction primitive, we collect thirty demonstrations in the real world by moving the bracket, either with a space mouse, allowing for six-dimensional manipulation, or by utilizing kinesthetic teaching.

Teleoperation (Space-Mouse)


Kinesthetic Teaching

Kinesthetic Teaching

In our user study, we show that kinesthetic teaching is preferred due to its intuitive maneuvering; however, data collected with the space mouse enables the usage of force/torque sensor data during inference since all measured disturbances can be attributed to interactions with the environment. Especially the availability of force/torque sensor data has been shown to provide a 20% improvement in task performance. Overall, when using force/torque data, our system acheives a 90% success rate.


  author    = {Stepputtis, Simon and Bandari, Maryam and Schaal, Stefan and Ben Amor, Heni},
  title     = {A System for Imitation Learning of Contact-Rich Bimanual Manipulation Policies},
  journal   = {IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS)},
  year      = {2022},
